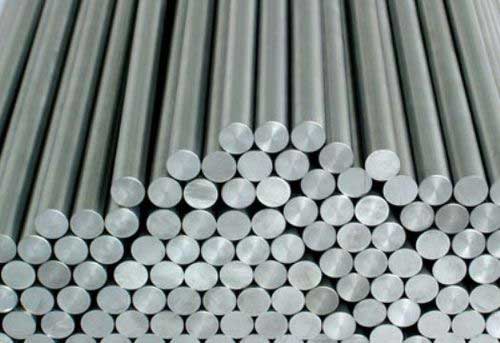

Stainless Steel Rods
We, within a short span has become a major source for Stainless Steel Rolled / Forged / Peeled Rounds, Res, Blooms & Billets. We have huge stocks for our quality products which are supplied on time at lowest possible rates meeting most of our customer's requirement.
Product Range
| Condition | Peeled, Centreless & Polished | Peeled & Polished | Peeled (Rough Turned) | Forged, Rough Turned |
|---|---|---|---|---|
| Grades | 201,202, 301,303,304, 304L, 310,316, 316L, 321,410, 416,416,420,, 430,431, 430F & others | 304, 304L, 316L, 410,416 420,430 | 303,304, 304L, 316, 316L, 410,416,420,431 | |
| Diameter (Size) | 20mm to 85mm (3/4" to 3-1/4") | 85mm to 140mm (3-1/4" to 5- ½") | 25mm to 140mm (1" to 5-1/2") | 150mm to 400mm (6" to 16") |
| Diameter / +3mmTolerance | h9 (Din 671) (ASTMA484) | h 11 | K 12/K 13 (Din 1013) | -0mm to (-0"/+0.12") |
| Length | 3/4/5, 6/6 meter (12/14ft/20 feet) | 3/4/5, 6/6 meter (12/14ft/20 feet) | 3/4/5,6/6 meter 10 feet, 16 feet | 3 meter - 5 meter |
| Length Tolerance | -0/+200mm of + 100mm to + 50mm (-0"/1 feet or +4" or 2") | -0/+ 200mm or +100mm or +50mm (-0"/+1 feet or +4" or 2") | -0/+ 100mm or 500mm (-0"/+3 feet or+2 feet) | -0/+2 meter -(-0/+6 feet) |
Stainless Steel Wires
| Diameter (Size) | Thick/Medium Wire -1mm to 8mm 10.039" to 0.314"1 | |
|---|---|---|
| Grade | 201,202, 204Cu, 302, 302HQ, 303,304, 304L, 304HC, 310,316, 316L, 321, 304LER, 308LER, 316LER, 420, 430L | |
| Surface Finish | Matt, Brioht Drawn, Brioht Shinv, EPQ, Coated, De-coated | |
| Diameter Tolerence | Diameter | Tolerence |
| 0.80 mm (0.0314") to< 1.50 mm (0.0590") +/-0.013 mm (0.0005") 1.50 mm (0.0590") to < 2.00 mm (0.0787") +/-0.013 mm (0.0006") 2.00 mm (0.0787") to< 4.00 mm (0.1574") +/-0.025 mm (0.0009") 4.00 mm (0.1574") to< 6.00 mm (0.236") +/-0.030 mm (0.0011") |
||
| Tensile Strength | Type | Tensile In Kg/mm' |
| Soft | 60-75 | |
| 1/4 Hard | 75-90 | |
| 1/2 Hard | 90-140 | |
| Full Hard | 140-200 or ASTMA313 /DIN 17224 | |
| Packing | - HOPE wrapped coils of 20 kg. to 250 kg. - Pattern laid coils on MS Carriers / spiders (200 Kg. to 1000 kg.) - Coils on wooden pallets ( 100 kg to 800 kg ) - Cheese coils (500 kg -1000 kg) - Drum Packing - Fine wire in Spools from Din 80 to Din 250 |
Stainless Steel Bright Bars (Cold Drawn)
| Condition | Cold Drawn and Polished | Cold Drawn, Center less Ground & Polished | Cold Drawn, Center less Ground and Polished (Strain Hardened) |
|---|---|---|---|
| Grades | 201,202,303,304, 304L, 310,316, 316L, 321,410,420,416,430,431, 430F, & others | 304, 304L, 316, 316L | |
| Diameter (Size) | 2mm to 5mm (1/8" to 3/16) | 6mm to 22mm (1/4" to 7/8") | 10mm to 40mm (3/8" to 1-1/2") |
| Diameter Tolerance | h9 (Din 671), h11 (ASTMA484) | h9 (Din 671) (ASTMA484) | h9 (Din 671), h11 (ASTMA484) |
| Length | 3/4/5, 6/6 meter (12/14ft/20 feet) | 3/4/5, 6/6 meter (12/14ft/20 feet) | 3/4/5, 6/6 meter (12/14/20 feet) |
| Length Tolerance | -0/+200mm of + 100mm to + 50mm (-0"/1 feet or +4" or 2") | -0/+ 200mm or +100mm or +50mm (-0"/+1 feet or +4" or 2") | -0/+200 mm(-0"/+1 feet) |
Stainless Steel Hexagon & Square Bars
| Type | Cold Drawn and Polished(Squares) | Cold Drawn and Polished (Hexagons) |
|---|---|---|
| Grades | 304, 304L, 316, 316L | 304, 304L, 316, 316L |
| Diameter (Size) | 5mm to 40mm (1/4" to 1-1/2") | 10mm to 40mm (3/8" to 1-1 /2") |
| Diameter Tolerance | h11 (ASTMA484) | h11 (ASTMA484) |
| Length | 3/4/6 meter (12/14ft/20 feet) | 3/4/6 meter (12/14ft/20 feet) |
| Length Tolerance | -0/+500mm (-0"/+2 feet) | -0/+500mm or+ 100mm or +50mm (-0"/+2feet) |
Stainless Steel Cold Heading Wires
| Condition | Cold drawn, Annealed and Pickeled |
|---|---|
| Diameter | 1.6 mm to 17 mm (1/16" to 11116") |
| Tensile Strength | 65kg / mm2 max |
| Packing | HOPE wrapped coils of 300 kg to 500 kg |
| Grades | 202,304, 304L, 316, 316L, 304HC, 302HQ |
